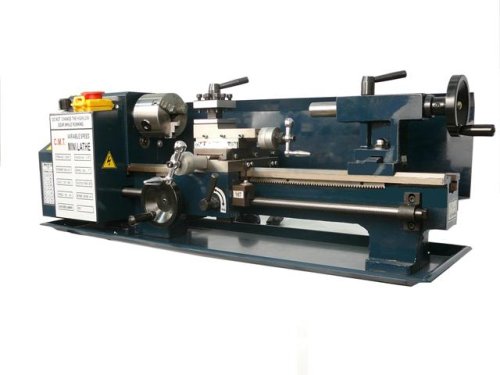

Close-Tolerance Compact Variable-Speed Metal Lathe - 7" x 14" |
| Brand: C.M.T. Industrial
Category: Home Improvement
This item is no longer available
Rating:  1 reviews
Sales Rank: 80381
Media: Misc.
MPN: CMT-ML7X14
UPC: 844699012674
ASIN: B000WJ6F5I
| |
| Features:
| • | Certified close-tolerance compact metal lathe for professional & DIY use | | • | Commercial-grade 550-watt single-phase 120V/60Hz motor; infinitely variable speed 0 - 2500 RPM | | • | 14" distance-between-centers, 7" swing over bed, 3-7/8" swing over saddle, 3/4" spindle bore | | • | 2.56" cross-slide travel, 1.56" top-slide travel, range of imperial threads 12-52 TPI | | • | Spindle accuracy 0.0004", high-grade iron lathe bed, heat-hardened, precision-ground slideways |
|
| Similar Items:
|
| Editorial Reviews:
Product Description
Professionals and discerning do-it-yourselfers know there's no substitute for the capabilities of a precision metal-turning lathe. Now you don't need to let lack of space (or a big bank balance) keep you from having a quality lathe right in your own shop. Quality-design and build for professional metal counter face-turning, drilling, threading and cutting results. Tolerances: spindle face vibration <0.00079", spindle nose vibration <0.001", spindle taper vibration (end of spindle nose) <0.00079", (100mm test bar) <0.001", parallelism of longitudinal motion of carriage (vertical, upward only) <0.002", (horizontal, forward only) <0.0016", tail stock spindle parallelism to longitudinal motion of carriage (in vertical) <0.001", (in horizontal) <0.001", tail stock spindle hole parallelism to longitudinal motion of carriage (vertical) <0.002", (horizontal) <0.002", difference in center height between headstock tail stock (tail stock upward) <0.003". M2 tail stock taper.Complete lathe includes: chuck, chuck key set screws, internal jaw set (3), external jaw set (3) gear set: M1 Z65, Z60 (2), Z57, Z55, Z50, Z45, Z40 (2), Z35 and Z30 fixed center, Allen wrench set, open-end wrench, clear-view safety shield, oil bottle, Operator's Manual. One-year warranty and Jack's Tool Shed worry-free Satisfaction Guarantee. Ships UPS/Fed Ex 3-5 business day delivery.
|
| Customer Reviews:
I'm not experienced, but it's a good lathe from what I can tell! December 27, 2007
3 out of 3 found this review helpful
I opened it up and started working on it right away. It's very smooth and precise. There is was a little play in the cross slide, but some simple adjustments with the included hex wrench fixed it. I have since disassembled the easily accessible parts and cleaned and greased them. It works great after a week. I'm working with aluminum mostly, and it just cuts it like butter.
I was nervous about paying the $516 (including shipping) for an import lathe. But it is working well so far. The change gears are plastic and make noise when the auto feed is engaged, but I hear that's very common. I'm hoping that the plastic gears will be cheap to replace IF they break, but no problems so far. I haven't tried cutting threads yet, so we'll see how that goes. But I've been impressed with it so far.
|
|
|
