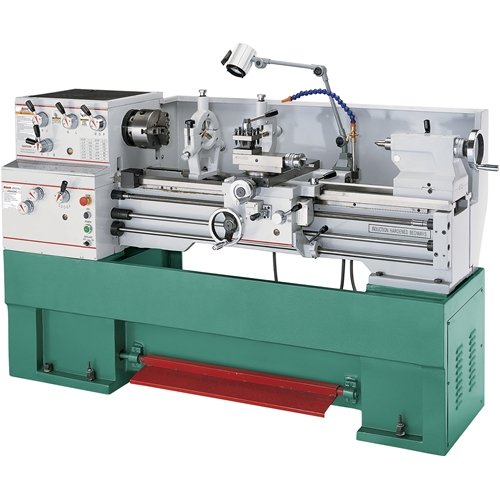

Grizzly G0554 14" x 40" Lathe |
| Brand: Grizzly
Category: Home Improvement
Buy New: $4,795.00
Media: Misc.
MPN: G0554
UPC: 690550005541
EAN: 0690550005541
ASIN: B00012YIIM
Availability: Usually ships in 1-2 business days
| |
| Features:
| • | 12 speeds: 40-1800 RPM | | • | Distance between centers: 40" | | • | Motor: 3 HP, 220V, single-phase, 60Hz, 1725 RPM | | • | One piece cast iron stand | | • | Swing: 14" over bed; 20" over gap; 8-1/2" over saddle |
|
| Accessories:
|
| Editorial Reviews:
Product Description
This fully equipped, heavy-duty floor lathe will handle just about anything you can throw at it. Features like extra wide 10 1/4" bedway, coolant system with splash guard, foot brake and interlocked feed rod and leadscrew, not to mention all the standard accessories that come with this machine, will turn your shop into a real profit center. Check out all the features and specifications and then look at the price again and you'll agree, this is one machine that's tough to beat! Other features include: 10-1/4" bed width; 1-1/2" spindle bore: D1-4 Camlock spindle nose: MT#5 spindle nose taper; 7" cross slide travel; 3-1/2" compound travel; MT#3 tailstock barrel taper; 4-5/8" tailstock barrel travel; 40 longitudinal and cross feeds; 0.0012"-0.0294" range of longitudinal feed; 0.0006"-0.0147" range of cross feeds; 4-112TPI inch threads; 22 metric threads; 0.45-7.5mm range of metric threads; 8TPI leadscrew; 3/4" feed rod diameter; overall dimensions of 45" height x 80" length x 29-1/2" width; foot brake; hardened and ground gears in headstock; induction hardened bedways; jog button and emergency stop; 6" 3-jaw chuck with two piece jaws; 8" 4-jaw chuck; 12" face plate; steady rest/follow rest; 4-way turret tool post; MT#3 dead center; coolant system with back splash; micrometer carriage stop; inch/metric dials; threading dial; mounted light; approximate shipping weight of 2738 lbs.
|
|
|
