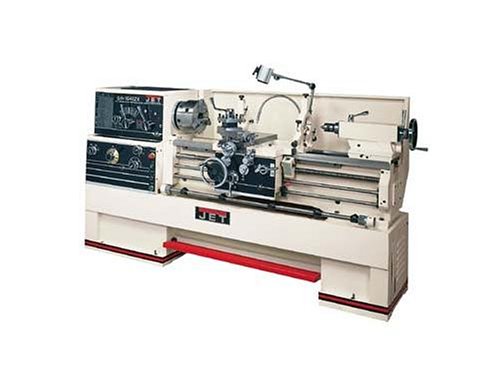

Jet 321920 GH-1460ZX 14-Inch Swing by 60-Inch between Centers Large Spindle Bore MetalworkingLathe, 230/460-Volt 3 Phase

Brand: Jet
Category: Home Improvement

List Price: ~~$15,399.00~~
Buy New: $12,237.98
You Save: $3161.02 (21%)

Sales Rank: 181342

Media: Tools & Hardware
Shipping Weight (lbs): 5585
Dimensions (in): 117 x 40 x 47

MPN: 321920
Model: 321920
UPC: 662755165054
EAN: 0662755165054
ASIN: B0007M6GAY

Shipping: Eligible for Super Saver Shipping
Availability: Usually ships in 2 to 3 days

Features:

•	7.5HP, 3Ph, 230/460V motor (Prewired 230V) for optimal turning power
•	3-1/8-inch spindle hole for large turning applications
•	12 spindle speeds ranging from 42-1800 RPM for a wide variety of turning applications
•	Chrome molybdenum headstock gears are hardened, ground, and shaved
•	Universal gearbox allows inch, metric, diametral, and module pitch threads, no change gears required

Accessories:

•	Jet 321374 Lathe Cabinet Stand For 321373
•	JET 709163 5-Piece Mini Lathe Turning Set
•	JET 709519 MIDI Lathe Chuck, 2-Inch Jaws
•	Jet 708355 JML-BE Bed Extension for 708351B JML-1014 Lathe
•	Jet JML-S-BEJ Lathe Stand Cross Bar

Editorial Reviews:

Product Description
Swing: 14 inch Centers: 60 inch Spindle: D1-8 Camlock 7 1/2 HP, 3Ph, 230/460V Brand Jet Carriage Travel (in.) 55 Compound Slide Travel (in.) 5-1/8 Cross Slide Travel (in.) 9 Distance Between Centers (in.) 60 Feature Tool box and adjusting tools Follow Rest Capacity (in.) 1/2-3-1/2 Height 66.5 inch Length 116 inch Length of Gap (in.) 12-1/4 Max Tool Size (in.) 1 x 1 Model Number GH-1460ZX Motor 7-1/2HP, 230/460V, 3Ph, Prewired 230V Net Weight 5380 pound Number of Inch Threads 61 Number of Longitudinal and Cross Feed Rates 122 Number of Metric Threads 24 Number of Spindle speeds 12 Overall Dimensions 116-1/2 x 40 x 46-7/8 Part Number 321920 Prewired 230V Range of Cross Feeds (IPR) .0006-.0365 Range of Inch Threads (TPI) 1-5/8-72 Range of Longitudinal Feeds (IPR) .0015-.0913 Range of Metric Threads .05-20 Range of Spindle Speeds (RPM) 42-1,800 Ship Weight 5585 pound Spindle Bore (in.) 3-1/8 Spindle Mount D1-8 Spindle Taper W/ Sleeve MT-7 (MT-5) Steady Rest Capacity (in.) 3/87 Swing Over Bed (in.) 14 Swing over Cross Slide (in.) 7-5/8 Swing Through Gap (in.) 23-5/8 Tailstock Spindle Travel (in.) 5 Taper in Tailstock Spindle MT-4 Width 44.5 inch Width of Bed (in.) 13-3/8
