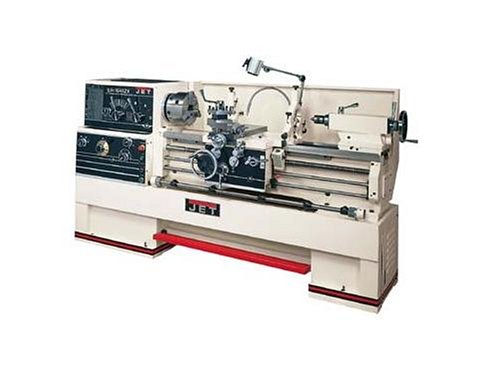

Jet 321940 GH-1660ZX 16-Inch Swing by 60-Inch between Centers Large Spindle Bore Metalworking Lathe, 230/460-Volt 3 Phase

Brand: Jet
Category: Home Improvement

List Price: ~~$16,499.00~~
Buy New: $12,799.00
You Save: $3700.00 (22%)

Media: Tools & Hardware
Shipping Weight (lbs): 1
Dimensions (in): 117 x 40 x 48

MPN: 321940
Model: 321940
UPC: 662755165078
EAN: 0662755165078
ASIN: B0007M6GC2

Shipping: Eligible for Super Saver Shipping
Promotion: Save $10.00 when you spend $50.00 or more on Qualifying Items offered by Amazon.com. Enter code BMLTOOLS at checkout. Terms and Conditions
Availability: Usually ships in 2 to 3 days

Features:

•	7.5HP, 3Ph, 230/460V motor (Prewired 230V)
•	3 1/8" Spindle Hole
•	16" Swing x 60" Centers
•	12 spindle speeds ranging from 25-1800 RPM

Accessories:

•	Jet 321374 Lathe Cabinet Stand For 321373
•	JET 709163 5-Piece Mini Lathe Turning Set
•	JET 709519 MIDI Lathe Chuck, 2-Inch Jaws
•	Jet 708355 JML-BE Bed Extension for 708351B JML-1014 Lathe
•	Jet JML-S-BEJ Lathe Stand Cross Bar

Editorial Reviews:

Product Description
Swing: 16 inch Centers: 60 inch Spindle: D1-8 Camlock 7 1/2 HP, 3Ph, 230/460V Brand Jet Carriage Travel (in.) 55 Compound Slide Travel (in.) 5-1/8 Cross Slide Travel (in.) 9 Distance Between Centers (in.) 60 Feature Live center Feature Tool box and adjusting tools Follow Rest Capacity (in.) 1/2-3-1/2 Height 66 inch Length 115.5 inch Length of Gap (in.) 12-1/4 Max Tool Size (in.) 1 x 1 Model Number GH-1660ZX Motor 7-1/2HP, 230/460V, 3Ph, Prewired 230V Net Weight 5795 pound Number of Inch Threads 61 Number of Longitudinal and Cross Feed Rates 122 Number of Metric Threads 24 Number of Spindle speeds 12 Overall Dimensions 116-1/2 x 40 x 48 Part Number 321940 Prewired 230V Range of Cross Feeds (IPR) .0006-.0365 Range of Inch Threads (TPI) 1-5/8 - 72 Range of Longitudinal Feeds (IPR) .0015-.0913 Range of Metric Threads .05-20 Range of Spindle Speeds (RPM) 25-1,800 Ship Weight 5999 pound Spindle Bore (in.) 3-1/8 Spindle Mount D1-8 Spindle Taper W/ Sleeve MT-7 (MT-5) Steady Rest Capacity (in.) 3/8-7 Swing Over Bed (in.) 16 Swing over Cross Slide (in.) 10 Swing Through Gap (in.) 25-7/8 Tailstock Spindle Travel (in.) 5 Taper in Tailstock Spindle MT-4 Width 44 inch Width of Bed (in.) 13-3/8
