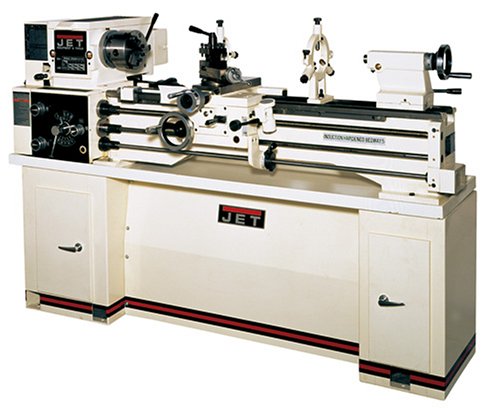

Jet 321121 BDB-1340A-200S 13-Inch Swing by 40-Inch Belt Drive Metalworking Lathe with Acu-Rite 200S Digital Readout, 230-Volts 1 Phase |
| Brand: WMH Tool Group
Category: Home Improvement
This item is no longer available
Color: White
Media: Tools & Hardware
Shipping Weight (lbs): 1263
Dimensions (in): 71 x 32 x 45
Model: 321121
UPC: 662755502743
EAN: 0662755502743
ASIN: B000GADIG2
|
|
|
Features:
| • | Fast, easy speed changes | | • | Change gears allow metric threading | | • | Spindle is supported by precision tapered roller bearings | | • | Gap bed section provided for large diameter work | | • | Independent lead screw and feed rod |
|
|
Accessories:
|
|
Editorial Reviews:
Product Description
Brand Jet Carriage Travel (in.) 35 Compound Slide Travel (in.) 2-11/16 Cross Slide Travel (in.) 6-5/16 Distance Between Centers (in.) 40 Follow Rest Capacity (in.) 2-3/4 Height 29.5 inch Length 76.5 inch Length of Gap (in.) 8 Max Tool Size (in.) 5/8 X 5/8 Motor 2HP, 230V, 1 Ph Net Weight 1263 pound Number of Inch Threads 40 Number of Longitudinal and Cross Feed Rates 40 Number of Metric Threads 27 Number of Spindle speeds 12 Part Number 321121 Prewired 230V Range of Cross Feeds (IPR) .0012 - .0345 Range of Inch Threads (TPI) 4 - 112 Range of Longitudinal Feeds (IPR) .0036 - .0325 Range of Metric Threads .02 - 6 Range of Spindle Speeds (RPM) 60 - 1240 Spindle Bore (in.) 1-3/8 Spindle Mount D1-4 Spindle Taper W/ Sleeve MT-5 (MT-3) Steady Rest Capacity (in.) 2-5/8 Swing Over Bed (in.) 13 Swing over Cross Slide (in.) 7-25/32 Swing Through Gap (in.) 18-3/4 Tailstock Spindle Travel (in.) 3-3/4 Taper in Tailstock Spindle MT-3 Width 30 inch Width of Bed (in.) 7-3/8
|
