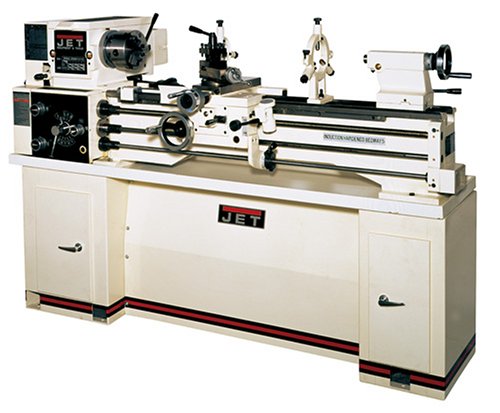

JET 321130 BDB-1340A-C80 13-Inch Swing by 40-Inch Belt Drive Metalworking Lathe with Newall C80 Digital Readout, 230-Volts 1 Phase |
| Brand: WMH Tool Group
Category: Home Improvement
This item is no longer available
Color: White
Media: Tools & Hardware
Shipping Weight (lbs): 954
Dimensions (in): 71 x 32 x 45
Model: 321130
UPC: 662755511851
EAN: 0662755511851
ASIN: B000GADIGC
|
|
|
Features:
| • | Fast, easy speed changes | | • | Change gears allow metric threading | | • | Spindle is supported by precision tapered roller bearings | | • | Gap bed section provided for large diameter work | | • | Independent lead screw and feed rod |
|
|
Accessories:
|
|
Editorial Reviews:
Product Description
Brand Jet Carriage Travel (in.) 35 Compound Slide Travel (in.) 2-11/16 Cross Slide Travel (in.) 6-5/16 Distance Between Centers (in.) 40 Follow Rest Capacity (in.) 2-3/4 Height 45 inch Length 71 inch Length of Gap (in.) 8 Max Tool Size (in.) 5/8 X 5/8 Motor 2HP, 230V, 1 Ph Net Weight 975 pound Number of Inch Threads 40 Number of Longitudinal and Cross Feed Rates 40 Number of Metric Threads 27 Number of Spindle speeds 12 Part Number 321130 Prewired 230V Range of Cross Feeds (IPR) .0012 - .0345 Range of Inch Threads (TPI) 4 - 112 Range of Longitudinal Feeds (IPR) .0036 - .0325 Range of Metric Threads 0.2 - 6 Range of Spindle Speeds (RPM) 60 - 1240 Spindle Bore (in.) 1-3/8 Spindle Mount D1-4 Spindle Taper W/ Sleeve MT-5 (MT-3) Steady Rest Capacity (in.) 2-5/8 Swing Over Bed (in.) 13 Swing over Cross Slide (in.) 7-25/32 Swing Through Gap (in.) 18-3/4 Tailstock Spindle Travel (in.) 3-3/4 Taper in Tailstock Spindle MT-3 Width 32 inch Width of Bed (in.) 7-3/8
|
