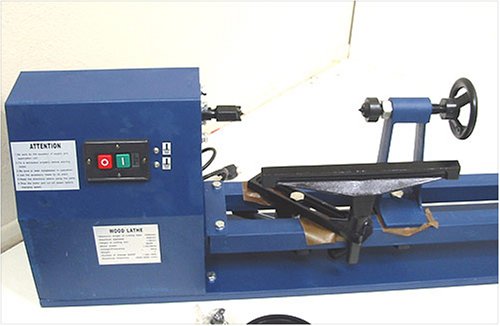

1/2hp 40 Inch 4 Speed Power Wood Turning Lathe 14x40 In |
| Brand: Generic
Category: Home Improvement
Buy New: $79.99
Rating:  1 reviews
Sales Rank: 86496
Media: Misc.
ASIN: B000UCK0W6
Availability: Usually ships in 1-2 business days
| |
| Features:
| • | Wood lathes turning capacity: 14" maximum diameter over bed. 40" maximum between centers. | | • | Wood lathe pulley system - Four speed, V belts | | • | Spindle Speeds: 810 RPM to 3400 RPM | | • | Motor - 350 watt, 1400 RPM, 110 volt AC, mounted to headstock. | | • | Overall measurements - 14.57" high, 9.45" wide, 59.05" long. |
|
| Editorial Reviews:
Product Description
Construction - Headstock, tailstock, foot, tool rest base, and tool rests are of heavy cast iron. Bed is made of heavy steel tubing.Headstock - The drive spindle is a No. 1 Morse taper, threaded 3/4" 16. The out bork end of the drive spindle can also be used for large turning and is threaded 3/4", 16, left hand.Tailstock - Slides along full length of the bed and clamps into position at any distance from the drive spindle. The ram has a hand wheel advance of 2 3/8" with positive lock and is fitted with a No. 1 Morse taper.
|
| Customer Reviews:
Almost a lathe November 25, 2007
20 out of 22 found this review helpful
Wanting to start turning and not knowing a whole lot about it, I bought this lathe. This is a classic example of "you get what you pay for". The bed is made from sheet metal and easily buckles when mounting work (i had to reinforce it with angle iron). The headstock and tailstock are solid, so they will not accept any mandrels / morse tapers. So if your looking for something to turn pens, keep looking, you can't do it with this lathe. The 4 spur center that comes with it is ok. The face plate is flimsy. The handles for the tool rest and tailstock hit each other when attempting to mount anything smaller than 6 inches (I modified my tool rest to overcome this). It does run smooth at all speeds. The tool rest is on a 3/4 inch post, so far I have not found and other tool rest that will fit it (thus I have had to make those too). The set pin for the tool rest had a cheap plastic handle that broke after a week. I replaced it with a bolt that I can turn with a wrench. The tailstock center is not removable so you wont be able to use any other centers with it (in order to overcome this I turned several jam chucks that fit over the fixed center). I have done extensive modifications to this lathe in the 8 months I have had it. With a PSI chuck I am able to mount and turn most projects I want to do. However, Now that I have saved up some money, I will be buying a new lathe. My recommendation is simple, Dont buy it. Intermediates and experts know better. For all the beginners out there, save your money buy a jet or delta that will take you well down the path of turning.
|
|
|
