Editorial Reviews:
Product Description

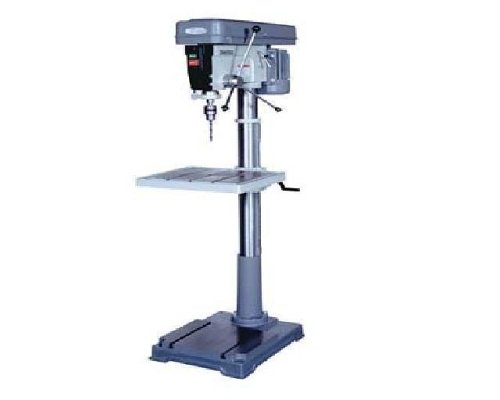

Base Dimensions (LxWxH/ in.) 11 x 18-1/2 Brand Wilton Chuck Size (in.) 5/8 Column Diameter (in.) 2-7/8 Distance Column to Spindle (in.) 7-1/2 Drilling Capacity Cast Iron (in.) 5/8 Drilling Capacity Mild Steel (in.) 1/2 Drills to Center of Circle (in) 15 Height 12 inch Important Information Capacities for continuos production user will vary based on application. Length 32 inch Model Number 2530 Motor 3/4HP, 115V, 1Ph, 1725 RPM Net Weight 147 pound Number of Spindle speeds 12 Overall Dimensions 26 x 13-3/8 x 39 Part Number 2530 Quill Diameter (in.) 1-7/8 Quill Travel (in.) 3-3/8 Range of Spindle Speeds (RPM) (250, 340, 390, 510, 600, 650, 990, 1550, 1620, 1900, 2620, 3100) Ship Weight 175 pound Spindle Distance to Base (in.) 24-1/2 Spindle Taper 2 MT Swing (in.) 15 T-Slots Number and Size (in.) N/A Table Size (in.) 10 x 10 Width 22.5 inch Work Table Weight Capacity (lbs.) 10 x 10
|
