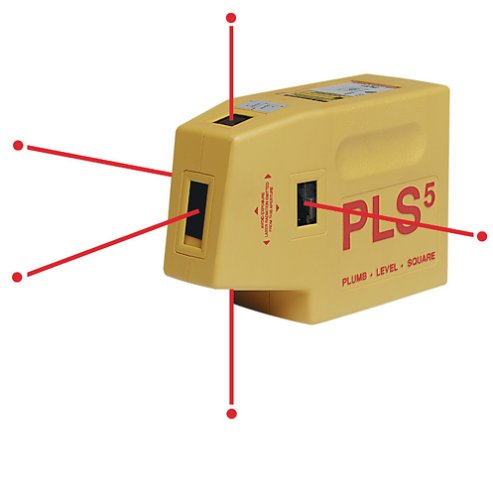

Pacific Laser Systems PLS5X Pulsating Indoor/Outdoor Laser |
| Brand: Pacific Laser System
Category: Home Improvement
List Price: $569.00
Buy New: $367.38
You Save: $201.62 (35%)
Rating:  2 reviews
Sales Rank: 8179
Media: Tools & Hardware
Fragile: Yes
Shipping Weight (lbs): 4.3
Dimensions (in): 0 x 0.1 x 0
MPN: PLS5X
Model: PLS5X
UPC: 416001000022
EAN: 0416001000022
ASIN: B00005RHQW
Shipping: Eligible for Super Saver Shipping
Availability: Usually ships in 24 hours
| |
| Features:
| • | World's first point-to-point indoor / outdoor laser | | • | Indoor and outdoor capabilities | | • | Accurate to 1/8" @ 100 feet | | • | 250 foot range | | • | Able to be used with receiver |
|
| Accessories:
|
| Similar Items:
|
| Editorial Reviews:
Product Description
The PLS5X is designed for layout of control points and lines in outdoor conditions, especially in bright sunlight. Working range is 250+ feet with an accuracy of 1/8" at 100 feet. Lay out conduit, anchor bolts and square on slab faster than ever before. Eliminate time consuming set up of infrared rotary lasers. PLS5X offers more utility outdoors at a fraction of the cost of typical rotary lasers. PLS5X Laser - Professional Exterior Alignment Tool. includes: PLS5X unit, magnetic wall bracket, custom pendulum layout target, floor stand, carrying case. Also include operating manual. Does not include laser detector. Concrete Construction: Layout of batter board. Layout & alignment for masonry projects. Layout for saw cutting (control joints). Alignment of anchor & J bolts. Layout & alignment of piers and column footings. Layout of form boards for concrete flatwork. Electrical and Mechanical Construction: Rough-in of conduit. Rough-in of waste and supply lines. Rough-in of natural gas supply lines. Framing Construction: Layout of control lines on concrete slabs, decking and sub-floors. Alignment of exterior heavy gauge steel framing. Layout & alignment for commercial & residential wood framing. Glazing Construction: Layout & installation of curtain walls & storefront projects.
|
| Customer Reviews:
 Great Tool October 9, 2008
The PLS5X is a great addition to any job site or project. Ready to use out of the box. No need to wonder if electronics are plumbing the laser as the PLS5X uses a calibrated pendulum. I think more people would like to know that this "self leveling" function is not controlled by batteries.GREAT TOOL!
 Not quite what I was expecting September 9, 2006
25 out of 25 found this review helpful
Just got this today. First thing I did was test for accuracy. Simple test, place unit on level surface and shoot a beam to a wall 100' feet away. Mark the center of the beam and rotate the unit 180 degrees and see where that mark ends up. It was exactly 5/8" out between the two marks which means the unit is off by 5/16" at 100'. That's really not bad but they spec it at 1/8" at 100' and that's what I was expecting to see.
Second problem is that at 100' indoors under normal office lighting I could see the right beam and center beam dot at 100' very clearly but the left beam was very dim in comparison.
At 100' the beam dot is elongated and measures 3/4" x 1/2", it's still easy to find the center of the beam though.
I did some basic tests for checking square and that seemed fine.
Before I bought the tool I knew about the side beams being 1" offset from the plumb beam and I was ok with that as long as it was accurate as per the specs. But the unit is out of spec by a factor of 1.5 (1/8" claimed versus 5/16"actual).
If 5/16" at 100' is ok for you then this is probably still a good tool and maybe that does not matter for most foundations. The left beam being so dim could be just a result of splitting the beams by a prism?
With the dot being so big I was concerned that the detector would not be able to accurately gauge the height. But there was no problem with that, the detector worked perfectly even with the large dot.
Just for fun I compared this tool with my Robotoolz 5 beam laser and the Robotoolz was 4" off at 100'! I also compared it to my Dewalt Self leveling rotary Laser, that laser is accurate to 1/8" at 100' according to my same testing method.
I'm guessing I'm going to return this laser...need to give it some thought, maybe I can have it calibrated but I'm not crazy about having to send something for calibration that I just took out of the box.
|
|
|
